M5 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67

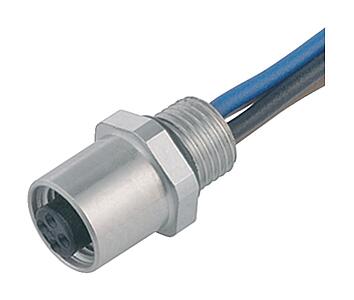

Illustration 09 3112 01 04 - M5 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67 — Illustration

3D View 09 3112 01 04 - M5 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67 — 3D View

Scale drawing 09 3112 01 04 - M5 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67 — Scale drawing

Assembly instructions / Panel cut-out 09 3112 01 04 - M5 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 3112 01 04 - M5 Female panel mount connector, Contacts: 4, unshielded, single wires, IP67 — Contact arrangement (Plug-in side)

Part no.	09 3112 01 04
Connector design	Female panel mount connector
Type standard	DIN EN 61076-2-105
Wire length	0.2 m (Standard 0.2 m. Other lengths are available on request).
Version	Connector socket straight
Connector locking system	screw
Termination	single wires
Degree of protection	IP67
Cross-sectional area	0.25 mm² / AWG 24
Temperature range from/to	-25 °C / 80 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	4.76
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	800 V
Rated current	1.0 A
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	I
EMC compliance	unshielded

Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	87542586-5ebf-4b0b-8f03-3c72a09f30ac

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
