Connectors for medical applications
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Show products
  1. Products
  2. Connectors for medical applications
  3. Snap-in IP67, miniature

Snap-in IP67 miniature connectors for medical applications

Series PDF (1 MB)
Accessory as PDF (217 KB)

720 Series snap-in miniature circular connectors have 3 to 12 contacts depending on the application. Medical-grade design is DEHP-free, grey-white, similar to RAL 9002, and is available as cable or flange connectors. Other colours can be ordered. The connector system is IP67 rated, the cable connectors have solder terminals, the flange connectors have solder/ dip solder terminals. Users can expect more than 500 mating cycles.

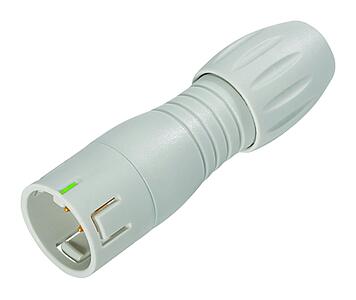

Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9105 403 03
Snap-In Male cable connector, Contacts: 3, 2.5-4.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9113 403 05
Snap-In Male cable connector, Contacts: 5, 2.5-4.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9125 403 08
Snap-In Male cable connector, Contacts: 8, 2.5-4.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9105 400 03
Snap-In Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9113 400 05
Snap-In Male cable connector, Contacts: 5, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9125 400 08
Snap-In Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED
99 9133 402 12
Snap-In Male cable connector, Contacts: 12, 6.0-8.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details

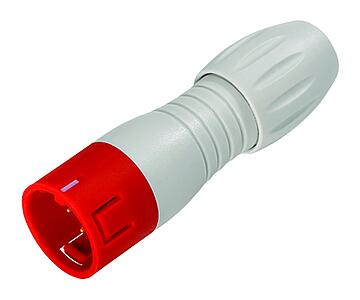

Connectors for medical applications--Male cable connector_720_1_KS_MED_rot
99 9105 450 03
Snap-In Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED_rot
99 9113 450 05
Snap-In Male cable connector, Contacts: 5, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED_rot
99 9125 450 08
Snap-In Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
Connectors for medical applications--Male cable connector_720_1_KS_MED_rot
99 9133 452 12
Snap-In Male cable connector, Contacts: 12, 6.0-8.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details

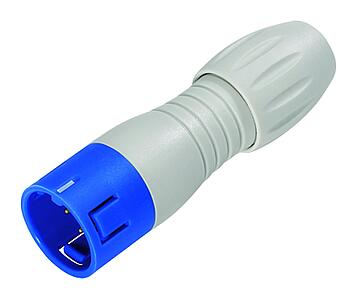

Connectors for medical applications--Male cable connector_720_1_KS_MED_blau
99 9105 460 03
Snap-In Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67
Snap-In IP67 (miniature), series 720, Connectors for medical applications
Details
