  4. M16 Male cable connector, Contacts: 12 (12-a), 4.1-7.8 mm, shieldable, solder, IP68, UL, Short version
Part no.: 99 5129 60 12

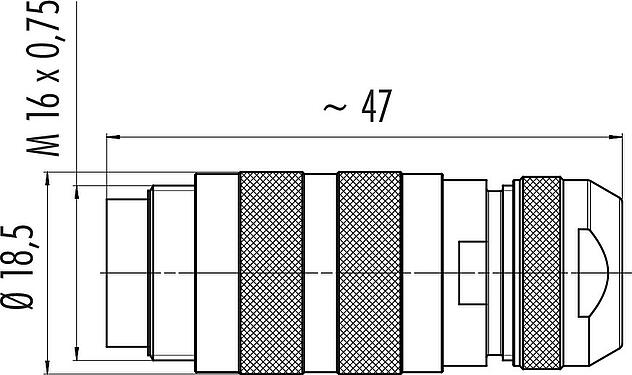

M16 Male cable connector, Contacts: 12 (12-a), 4.1-7.8 mm, shieldable, solder, IP68, UL, Short version

M16 IP67, series 423, Miniature Connectors
General features
Moreless
Part no. 99 5129 60 12
Connector design Male cable connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP68
Cross-sectional area max. 0.25 mm² / AWG 24
Cable outlet 4.1-7.8 mm
Temperature range from/to -30 °C / 95 °C
Mechanical operation > 500 Mating cycles
Additional information Short version
Weight (g) 39.23
Customs tariff number 85369010
Country of Origin DE
Rated voltage 32 V
Rated impulse voltage 500 V
Rated current 3,0 A
Pollution degree 2
Overvoltage category II
Insulating material group III
EMC compliance shieldable
Shield connection cable clamp
Housing material CuZn (Brass nickel plated)
Contact body material PBT
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bbeabfc7-3f15-4b61-831a-80f610666d4e
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
