  2. Miniature connectors
  3. M16 IP67
  4. M16 Female panel mount connector, Contacts: 12 (12-a), unshielded, THT, IP67, front fastened
Part no.: 09 0132 65 12

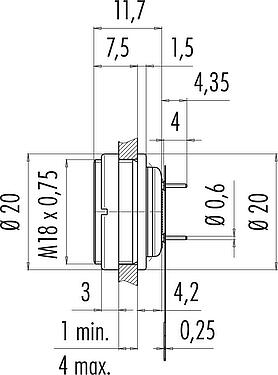

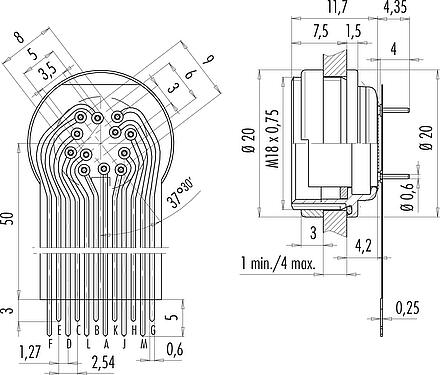

M16 Female panel mount connector, Contacts: 12 (12-a), unshielded, THT, IP67, front fastened

M16 IP67, series 723, Miniature Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 0132 65 12
Connector design Female panel mount connector
Type standard DIN EN 61076-2-106
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP67
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.76
Customs tariff number 85369010
Country of Origin DE
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 365c639e-cd7a-4848-ab2f-d25babae99ef
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
