15.01.2019

New product: M12 Male Panel Mount Connector, Positionable, Lockable

Square flange consisting of a separate housing and contact carrier
Separate processing of housing and wires for subsequent mounting possible
AWG24/7 wires ensure a fast and easy (direct) processing
Different cable outlet directions for angled connectors are possible due to the variable positioning of the coding
Available from 11/17 on

Series	763
Series Contacts	763 4, 5, 8
Series Coding	763 A
Series Thread	763 M12
Series Rated current	763 4 A (3 A UL), 1,5 A (2A UL)
Series Rated voltage	763 250 V, 60 V, 30 V
Series Degree of protection	763 IP68 in mated condition
Series Contact plating	763 Au (gold)
Series Termination	763 single wires AWG24/7

Male panel mount connector, rectangular flange, positioning possible, lockable

Contacts	4
Contacts Coding	4 A
Contacts Ordering-No.	4 99 3433 100 04

Contacts	5
Contacts Coding	5 A
Contacts Ordering-No.	5 99 3443 100 05

Contacts	8
Contacts Coding	8 A
Contacts Ordering-No.	8 99 3483 100 08

Illustration

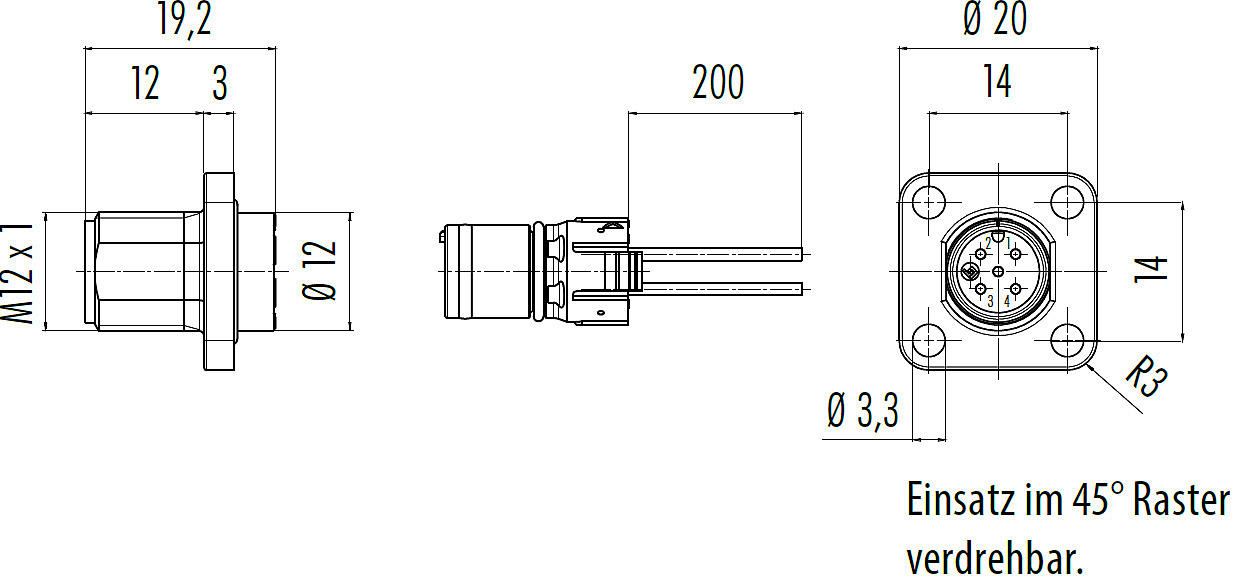

Maßzeichnung

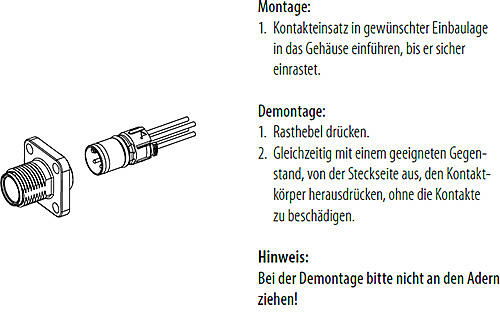

Assembly instruction

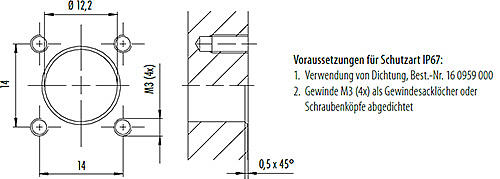

Panel cut out

Flanschsteckverbinder Vierkantflansch
